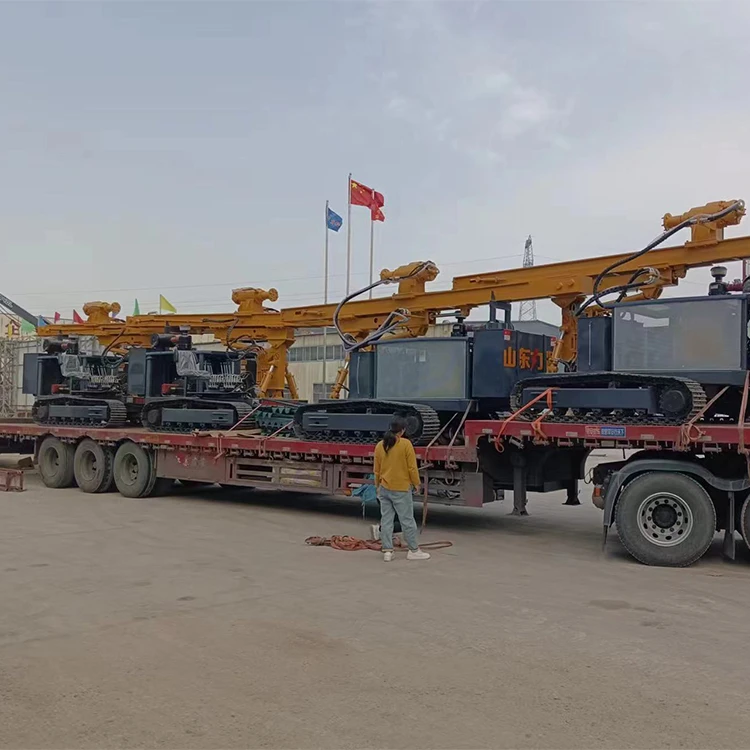

6m Photovoltaic Pile Driver
Engine model: YUNNEI
Engine power (KW): 88
Plunger pump: 63
SDLQ 6m hydraulic press Factory spot solar pile driver drilling pile driver ground screw pile driver.
| PV pile driver | LG6-360(custom made) | |
| 1 | Engine model | YUNNEI |
| 2 | Engine power (KW) | 88 |
| 3 | Plunger pump | 63 |
| 4 | Oil pump pressure (Mpa) | 28 |
| 5 | Power head output torque(KN.M) | 6000 |
| 6 | Power head output speed(r/min) | 0-65 |
| 7 | Lifting force of lifting cylinder of power head(KN) | 80 |
| 8 | Deepest pile driving(mm) | 6000 |
| 9 | Maximum diameter(mm) | 100mm-600mm |
| 11 | Maximum diameter of impact hammer(mm) | 200 |
| 13 | Volume of hydraulic oil tank (L) | 160 |
| 14 | Diesel tank volume (L) | 150 |
| 15 | track width (mm) | 350 |
| 16 | Speed(km/h) | 4 |
| 17 | Gradient(°) | 35 |
| 18 | Working state length * width * height(mm) | 3800*2200*7600 |
| 19 | Transportation statuslength * width * height(mm) | 7800*2200*2600 |
| 20 | Operating Weight(T) | 7.7 |
Performance features
The power head is pressurized by an oil cylinder and has a high torque of 70KN; the chain drive has a long service life and is multi-purpose. It can be used as a long spiral pile driver by replacing the drill rod.
It can drive spiral piles, drill holes, break holes, and guide holes; it is convenient to install the impactor, has complete functions and strong scalability. Yunnei 88Kw engine is energy-saving and fuel-saving.
Reinforced mast, strong pressure-bearing capacity, wear-resistant and durable.
The pipe fittings connecting the wire heads are made of 45# steel, which is high in hardness, durable, brightly plated and does not rust.
Maximum drilling depth: 6 meters
Drilling method: spiral drilling
Drilling range: 100mm-550mm
Engine: Standard Yunnei 88KW, optional Cummins or Yuchai engine
Reasons for recommendation: Fast drilling speed and strong customization capabilities.
FAQ
Q: 1. Who are we?
A: We are based in Shandong, China, start from 2010,sell to Domestic Market(90.00%),Southeast Asia(5.00%),South America(3.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.
Q: 2. How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: 3.What can you buy from us?
A: 6m Photovoltaic Pile Driver,Rotary Drilling Rig, Pile Driver, Construction Machinery
Q: 4. Why should you buy from us not from other suppliers?
A: Shandong Liqiang Machinery Co., Ltd. is a professional Chinese rotary drilling rig and pile driver exporter located in Tengzhou City, Shandong Province. With the most advanced production equipment and the most complete service.
Q: 5. What services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
