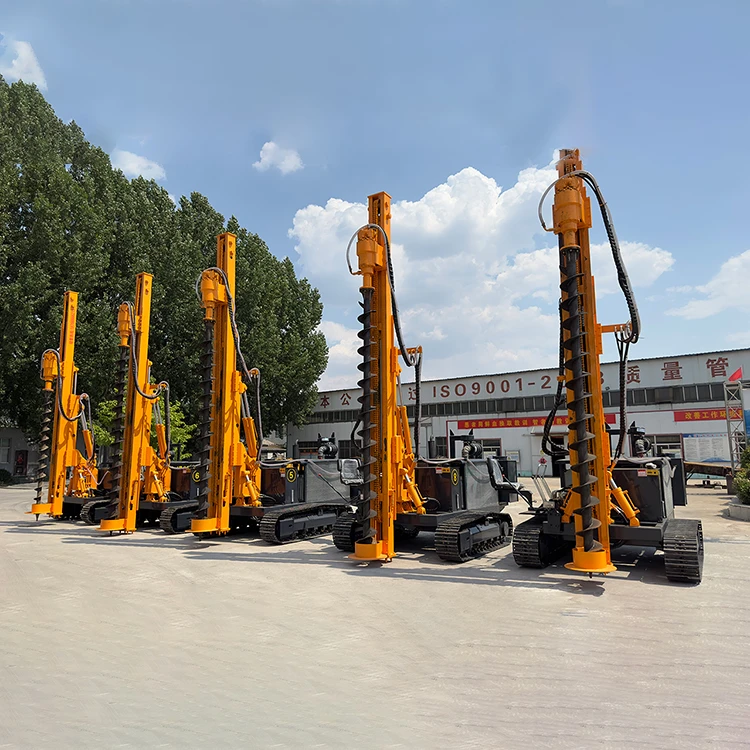

Solar Pile Driver

SDLQ Renewable energy solar ramming Pile Driver Solar pile driving Machine Solar Pile Driver





1	Engine model	YUNNEI
2	Engine power (KW)	88
3	Plunger pump	63
4	Oil pump pressure (Mpa)	28
5	Power head output torque(KN.M)	6000
6	Power head output speed(r/min)	0-65
7	Lifting force of lifting cylinder of power head(KN)	80
8	Deepest pile driving(mm)	6000
9	Maximum diameter(mm)	100mm-600mm
11	Maximum diameter of impact hammer(mm)	200
13	Volume of hydraulic oil tank (L)	160
14	Diesel tank volume (L)	150
15	track width (mm)	350
16	Speed(km/h)	4
17	Gradient(°)	35
18	Working state length * width * height(mm)	3800*2200*7600
19	Transportation statuslength * width * height(mm)	7800*2200*2600
20	Operating Weight(T)	7.7





The power head adopts oi cylinder pressurization and high torque of 7000Kn; The chain drive has a long service life and can be used for multiple purposes.



When replacing the mast, it can be used as a long spiral pile driver.



Can drll spiral piles, drill holes, and guide holes; The impactor is convenient to instal, with complete functions and strong scalabity.











Innovation-driven, intelligent future

Since its establishment in 2010, Shandong Liqiang Machinery Co., Ltd. has been committed to innovative R&D and intelligent manufacturing in the field of engineering machinery. As a leading engineering machinery manufacturer in southern Shandong, the company has a modern production base covering more than 30,000 square meters and advanced production equipment worth more than 60 million yuan, and has built a complete R&D and manufacturing system.

The company focuses on the R&D and production of professional equipment such as rotary drilling rigs and pile drivers. The product line covers more than ten kinds of professional equipment such as crawler machine lock rod rotary drilling rigs and solar photovoltaic pile drivers. With the development concept of "quality first, innovation-oriented", the company took the lead in passing the ISO9001:2015 international quality management system certification, and won a number of qualification certifications such as "China Well-known Brand" and "Technology-based Small and Medium Enterprises".

In terms of technological innovation, Liqiang Machinery has established strategic cooperation with well-known companies such as China Longgong and Dongfeng Cummins, and has carried out industry-university-research cooperation with many universities. So far, the company has obtained 13 patent technologies, of which 2 invention patents have been industrialized. In 2021, the company reached in-depth cooperation with XCMG Group and became its designated excavator modification unit, which fully demonstrated the company's technical strength.

With excellent product quality, Liqiang Machinery's products are not only sold well in more than 20 provinces and cities across the country, but also exported to overseas markets such as Southeast Asia, the Middle East, and Africa. In the future, the company will increase investment in intelligent production equipment, promote product upgrades, and strive to become an important participant in the global engineering machinery field.
