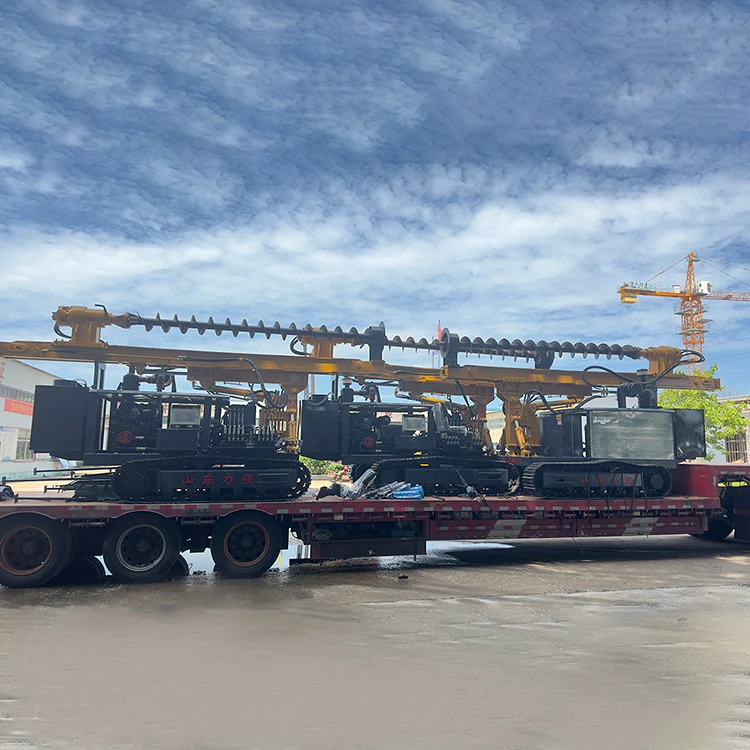

solar pile driver machine

Ground screw drilling machine rotary drilling rig pile driver stable pile erection pile driver machine for rock





Engine model	YUNNEI
Engine power (KW)	88
Plunger pump	63
Oil pump pressure (Mpa)	28
Power head output torque(KN.M)	6000
Power head output speed(r/min)	0-65
Lifting force of lifting cylinder of power head(KN)	80
Deepest pile driving(mm)	6000
Maximum diameter(mm)	100mm-600mm
Maximum diameter of impact hammer(mm)	200
Volume of hydraulic oil tank (L)	160
Diesel tank volume (L)	150
track width (mm)	350
Speed(km/h)	4
Gradient(°)	35
Working state length * width * height(mm)	3800*2200*7600
Transportation statuslength * width * height(mm)	7800*2200*2600





The power head is pressurized by an oil cylinder and has a high torque of 70KN; the chain drive has a long service life and is multi-purpose. It can be used as a long spiral pile driver by replacing the drill rod.



It can drive spiral piles, drill holes, break holes, and guide holes; it is convenient to install the impactor, has complete functions and strong scalability. Yunnei 88Kw engine is energy-saving and fuel-saving.



Reinforced mast, strong pressure-bearing capacity, wear-resistant and durable.



The pipe fittings connecting the wire heads are made of 45# steel, which is high in hardness, durable, brightly plated and does not rust.











1.All spare parts can be changed for free with in 12 months.
2.The machine are expected to be functioning 10years with ability of spare parts.
3.You can enjoy technical support by phone call or email forever.We will respond quickly to provide a prompt solution.
4.On-site training could be executed if this term is included in the contracts agreed.
5.We can assign our engineers abroad for on-site service if this term is included in the contracts agreed



Liqiang Machinery Co., Ltd. is a high-tech enterprise focusing on the research and development and manufacturing of small pile-driving machinery. Since its establishment in 2004, the company has always been committed to promoting the localization of Chinese excavators and providing efficient and reliable machinery and equipment for new rural construction and urbanization development. The headquarters is located in Jiangtun Industrial Park, Tengzhou City, Shandong Province. It not only has a profound historical and cultural heritage, but also has a convenient transportation network, including National Highway 104, Beijing-Fuzhou Expressway, Beijing-Shanghai Railway and Beijing-Hangzhou Grand Canal, which provides unique conditions for the development of enterprises.

The company has a registered capital of 60 million yuan and has more than 400 employees, of which technical R&D personnel account for more than 50%. With ISO9001 international quality system certification and ISO14001 environmental certification, Liqiang Machinery fully applies CAD and ERP systems in product research and development and management to ensure product quality and leading technology. The company's products cover more than 30 varieties in eight categories, including wheeled/crawler/solar photovoltaic/solar pile driver machine/long spiral pile drivers, etc. The sales network covers 29 provinces, municipalities and autonomous regions across the country, and is exported to overseas markets such as Africa, South America and the Middle East.

Liqiang Machinery takes "dream, action, persistence, gratitude, responsibility and future" as its core values, adheres to the corporate spirit of "honesty, trustworthiness, pioneering and innovation", and is determined to become a benchmark brand of national industry and contribute to the rise of China's manufacturing industry.
